Key Elements of Parking Lot Striping:

1. Parking Space Lines

  • Standard stalls: Usually 9 feet wide by 18 feet long.

  • Compact stalls: Typically narrower, around 8 feet wide.

  • Angled vs. straight-in parking: Angled spaces allow for easier entry/exit but use more space.

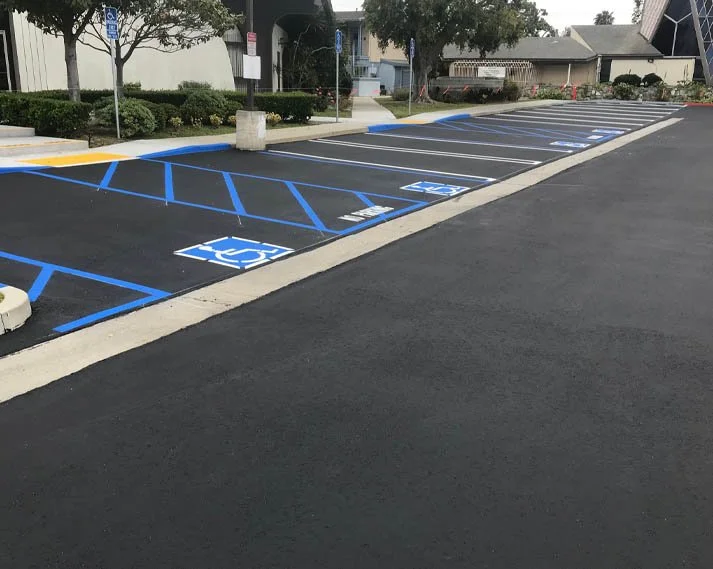

2. ADA-Compliant Spaces

  • Marked with a wheelchair symbol.

  • Wider with access aisles (5–8 feet) to accommodate wheelchair users.

  • Often located near entrances.

3. Directional Arrows

  • Guide the flow of traffic through the lot.

  • Help prevent accidents and confusion.

4. Stop Bars and Crosswalks

  • Marked at intersections within the lot.

  • Indicate where vehicles must stop for pedestrian crossings or other vehicles.

5. Fire Lane Markings

  • Usually marked with red paint and "No Parking – Fire Lane" text.

  • Ensures emergency access is maintained.

6. Numbering or Lettering

  • Used in large lots for space identification.

  • Helps with navigation and organization.

Materials Used:

  • Thermoplastic or traffic paint (water- or solvent-based).

  • Colors typically include white, yellow, red, and blue (ADA).

Importance:

  • Enhances safety for drivers and pedestrians.

  • Ensures compliance with legal and ADA requirements.

  • Improves curb appeal and efficiency.

Maintenance:

  • Typically restriped every 1–2 years, depending on traffic, weather, and material used.

 FAQs

    • Plan the Layout

      • Follow local/ADA codes

      • Standard stall: 9' x 18', ADA needs aisle

    • Clean the Surface

      • Sweep or pressure wash

      • Ensure it’s fully dry

    • Mark Guidelines

      • Use chalk or tape to mark lines and positions

    • Set Up & Paint

      • Load paint into striping machine

      • Paint lines, arrows, symbols using stencils

      • Keep steady for clean lines

    • Dry & Inspect

      • Let paint dry

      • Block off area; touch up if needed

  • Typically, parking lot paint dries in approximately 3 to 4 hours. However, drying time can fluctuate due to weather conditions; cold and humid weather can significantly extend the drying process.

  • The cost of striping a parking lot depends on several factors, including its size, current condition, number of spaces, and required markings. On average, prices typically range from $300 to $700, depending on the complexity of the job.

  • Yes! We offer discounts for any returning businesses.
